v22

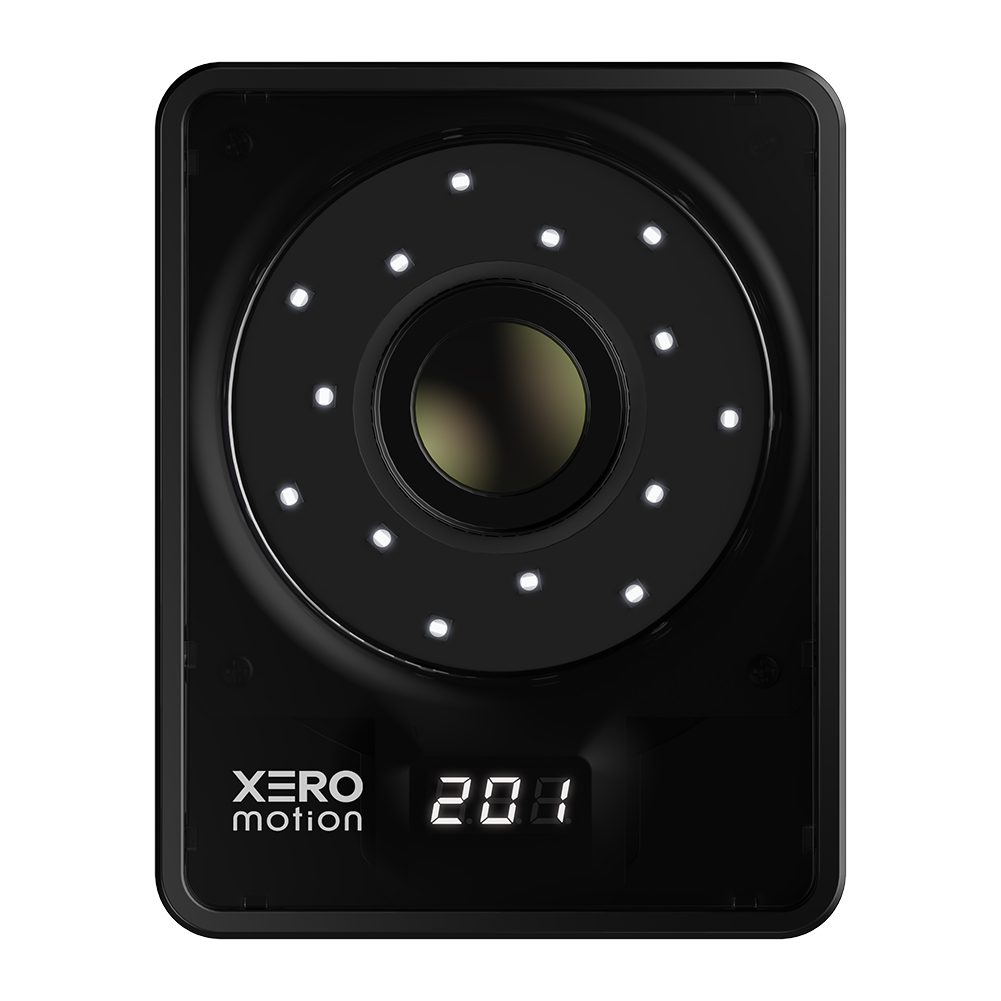

This is the next-generation optical motion capture camera from XEROmotion, an all-in-one solution that features high-precision tracking, high-speed processing, and real-time streaming capabilities. It is designed to be suitable for a wide range of work environments, from studio filming to real-time metaverse content creation.
HALO v22 delivers high-resolution, stable performance for efficient motion capture, even in confined spaces.
2048×1088
RESOLUTION
The 2048×1088 resolution ensures superior clarity and detail.
380FPS
FRAME RATE
A high frame rate of 380fps delivers exceptionally smooth and natural motion.
2.3ms
LATENCY
The low 2.3ms latency enables nearly instantaneous real-time feedback.
±0.13mm
3D Accuracy
Ensures remarkable precision, accurate to within ±0.13mm.

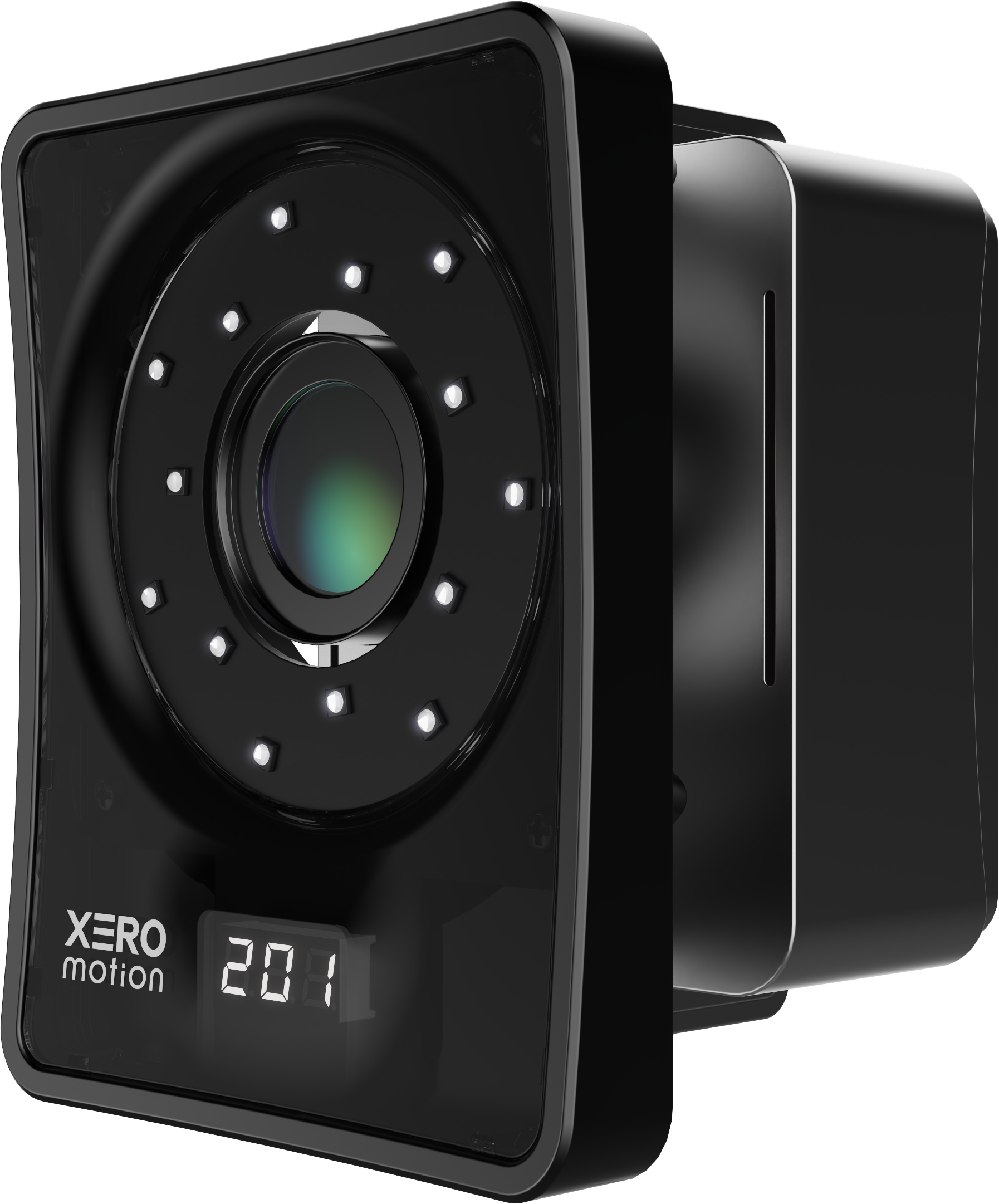

FULL CNC
ALUMINUM BODY
Crafted from CNC-machined aluminum alloy and finished with a premium 205-grit anodized zirconium sandblasting process, HALO offers a seamless blend of elegance, texture, and durability.
FULL CNC
ALUMINUM BODY
Crafted from CNC-machined aluminum alloy and finished with a premium 205-grit anodized zirconium sandblasting process, HALO offers a seamless blend of elegance, texture, and durability.

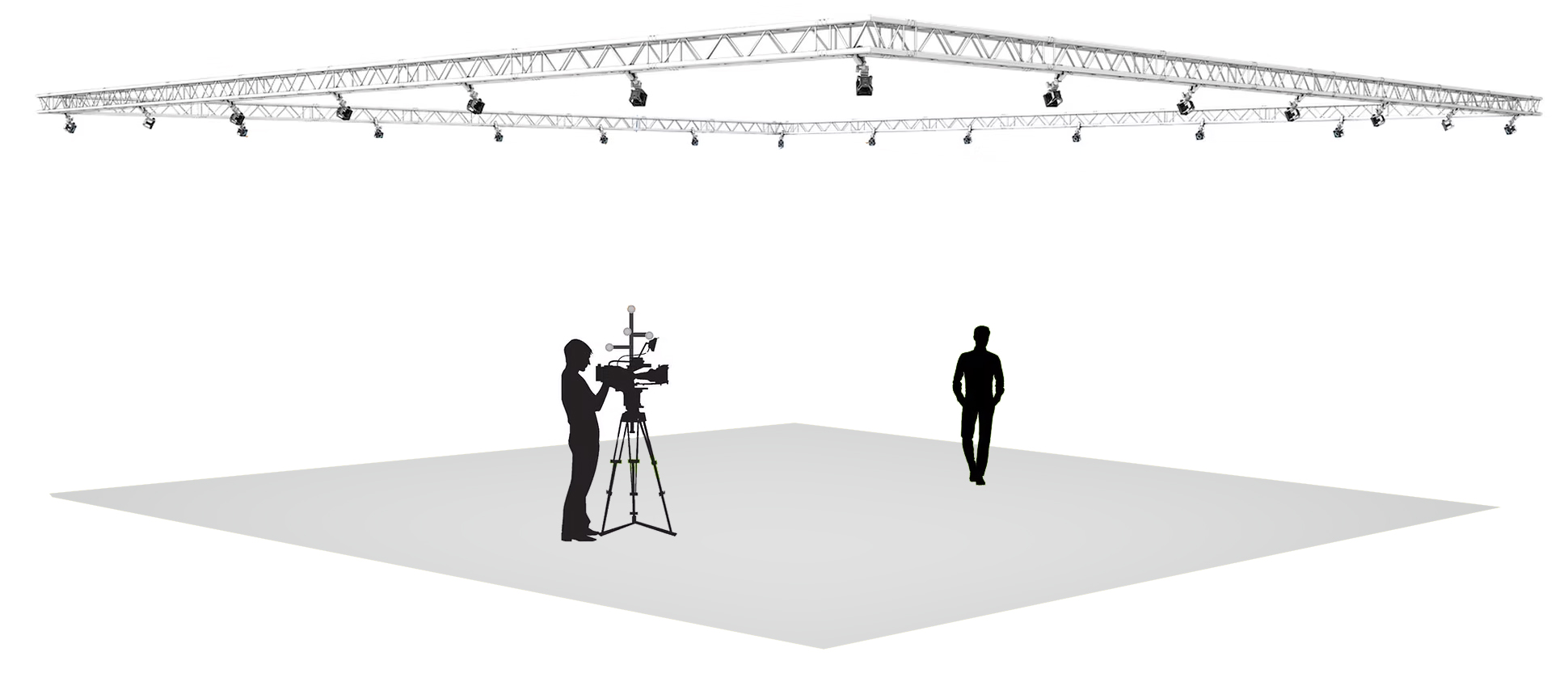

Maximized Field of View for 100% Workspace Utilization
The HALO v22 features a 8mm lens, specifically engineered for complete capture from wall to wall and corner to corner, even in spacious environments like laboratories and studios.
This design maximizes your spatial efficiency and delivers flexible, wide-area coverage, especially when ceiling-mounted.
Maximized Field of View for 100% Workspace Utilization
The HALO v22 features a 8mm lens, specifically engineered for complete capture from wall to wall and corner to corner, even in spacious environments like laboratories and studios.
This design maximizes your spatial efficiency and delivers flexible, wide-area coverage, especially when ceiling-mounted.
Precise 3D Capture, Maximized Workspace
Capture every detail seamlessly, from wall to wall and corner to corner. Our system is engineered to maximize your operational area, offering flexible, wide-ranging coverage, especially when ceiling-mounted.
Unlike conventional optical systems limited to flat, open spaces, our solution delivers precise calibration even in complex environments, including stairs and around structures. This ensures you can maintain high-fidelity accuracy, even in the most constrained locations.
Precise 3D Capture, Maximized Workspace
Capture every detail seamlessly, from wall to wall and corner to corner. Our system is engineered to maximize your operational area, offering flexible, wide-ranging coverage, especially when ceiling-mounted.
Unlike conventional optical systems limited to flat, open spaces, our solution delivers precise calibration even in complex environments, including stairs and around structures. This ensures you can maintain high-fidelity accuracy, even in the most constrained locations.
Real-Time Integration & Broad SDK Support
Real-time integration is available with major content creation tools like Unreal Engine, Unity, Maya, iClone, and MotionBuilder via powerful plugins. Additionally, it supports a wide range of development environments including Linux, Python, Matlab, Simulink, C#, and C++.
.png)
Built-In Precision Sync Function
The camera features integrated synchronization, enabling precise interfacing with external devices without the need for separate sync hardware. This allows for simple, direct connections to equipment like DAQ, EMG, and force plates, eliminating complex setup procedures. Enjoy streamlined integration and easy setup, even in diverse hardware ecosystems.
Built-In Precision Sync Function
The camera features integrated synchronization, enabling precise interfacing with external devices without the need for separate sync hardware. This allows for simple, direct connections to equipment like DAQ, EMG, and force plates, eliminating complex setup procedures. Enjoy streamlined integration and easy setup, even in diverse hardware ecosystems.

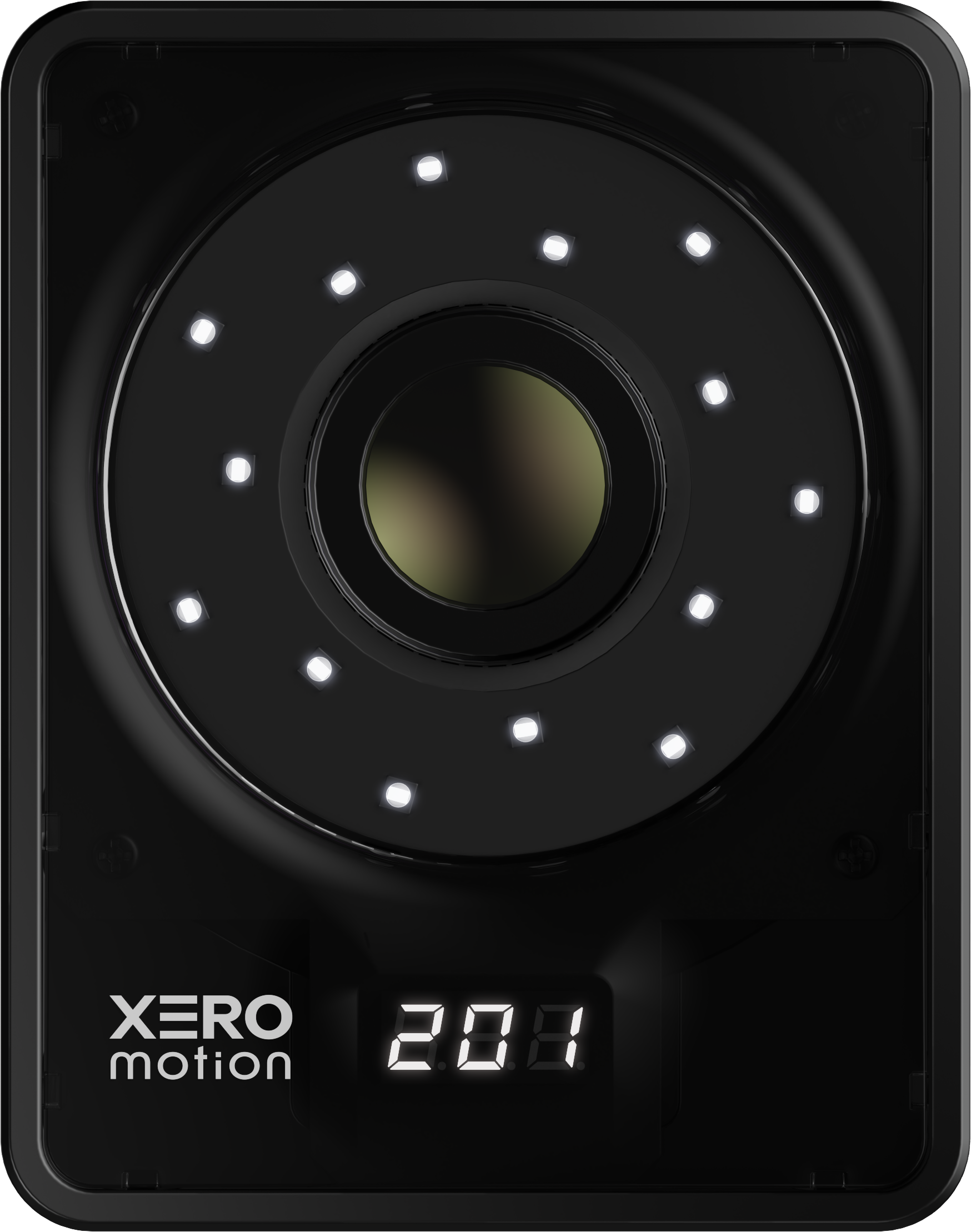

Powerful Strobe Output
Equipped with an ultra-high-power LED strobe, our system clearly captures markers at significantly greater distances, even with identical shutter settings.
This powerful illumination allows for precise capture at very low exposure values, delivering stable and reliable data across large spaces or in high-speed motion environments.
Powerful Strobe Output
Equipped with an ultra-high-power LED strobe, our system clearly captures markers at significantly greater distances, even with identical shutter settings.
This powerful illumination allows for precise capture at very low exposure values, delivering stable and reliable data across large spaces or in high-speed motion environments.
Up to 72 Hours of Continuous Operation
Featuring superior thermal design and exceptional power stability, our system is capable of continuous, uninterrupted recording for up to 72 hours.
This ensures robust reliability without downtime, even in demanding environments that require extended recording sessions or continuous tracking.
Up to 72 Hours of Continuous Operation
Featuring superior thermal design and exceptional power stability, our system is capable of continuous, uninterrupted recording for up to 72 hours.
This ensures robust reliability without downtime, even in demanding environments that require extended recording sessions or continuous tracking.
Fast After-Sales Service and Affordable Maintenance
As a domestic (Korean) manufacturer, we provide fast and accurate after-sales service. Unlike overseas products, we offer a rapid response without the burden of expensive shipping fees or long repair delays.
Enjoy peace of mind with hassle-free post-purchase maintenance. We provide comprehensive support, including online training and direct OEM technical assistance, to ensure stable and reliable system operation.
Fast After-Sales Service and Affordable Maintenance
As a domestic (Korean) manufacturer, we provide fast and accurate after-sales service. Unlike overseas products, we offer a rapid response without the burden of expensive shipping fees or long repair delays.
Enjoy peace of mind with hassle-free post-purchase maintenance. We provide comprehensive support, including online training and direct OEM technical assistance, to ensure stable and reliable system operation.
Specifications
Model | v22 | v22W |
|---|---|---|
Resolution | 2048×1088 | 2048×1088 |
Frame Rate@Full
| 380 | 380 |
Lens Specification | 8mm | 6mm |
Field of View(FOV) | 70 °×40° | 104°×55° |
Camera Latency | 2.40ms | 2.40ms |
Type of Exposure | global | global |
Connection Type | GigE/POE | GigE/POE |
Max Power Consumption | 18W | 18W |
Dimensions (mm) (H x W x D) | 104.8×133×107.5mm | 104.8×133×107.5mm |
Weight | 1.05kg | 0.9kg |
